BATTERY INFORMATION

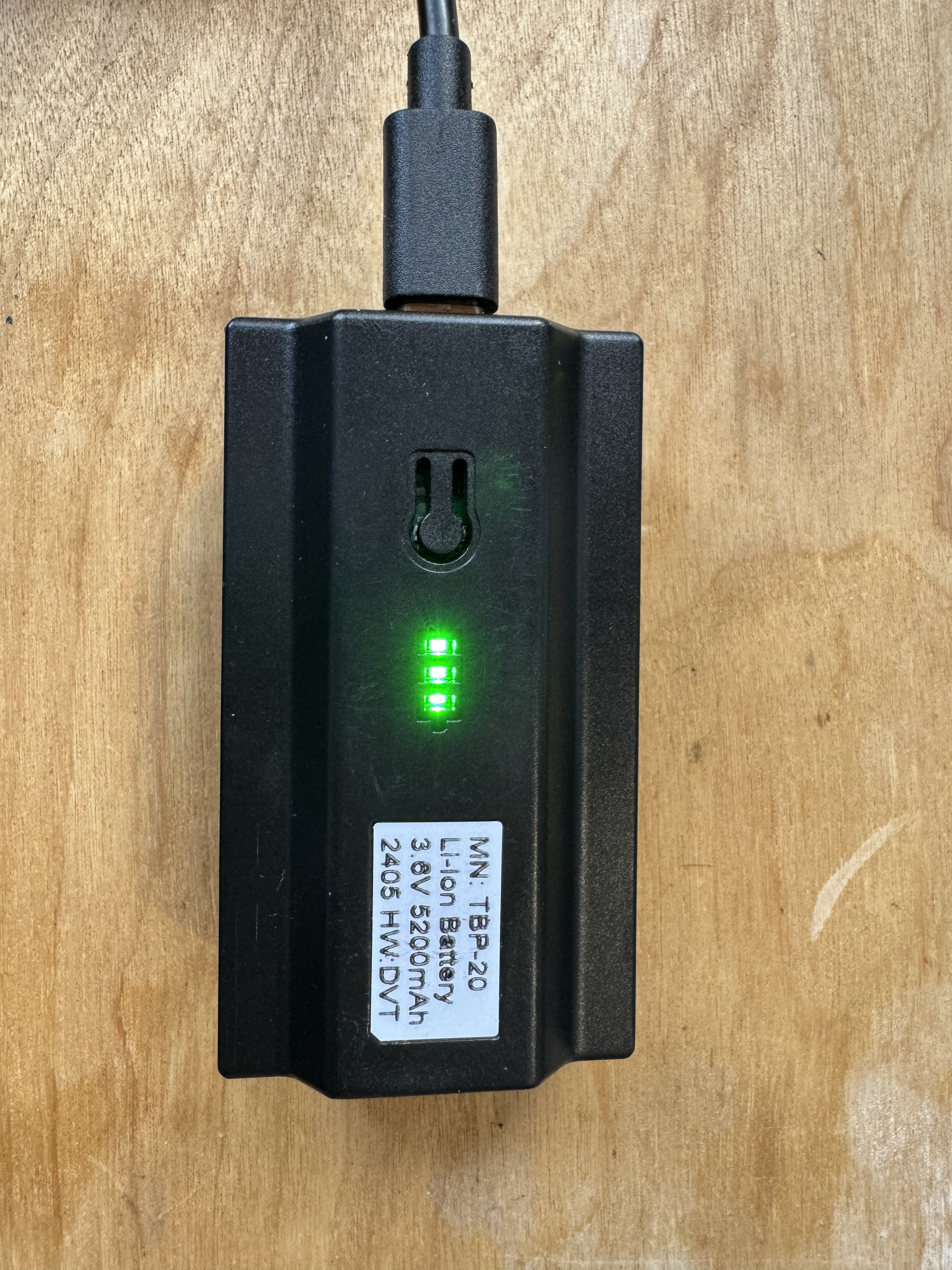

- Using the included USB-C cable and a 5V power block (not included) charge the Lithium-Ion Battery Cartridge for ~6hrs. When fully charged, all three LEDs will display solid green.
- To check the battery charge level, press the button on the cartridge.
1 LED = Low Battery
2 LED = Half Charge
3 LED = Fully Charge
- Install battery into the camera. Ensure the battery compartment is fully closed, and the latch has clicked into place.
POWERING ON/OFF THE DEVICE
- Power On
- Hold the Power button down for 3 seconds
- LED will begin to flash violet
- The camera will provide an audio prompt “Power On”
-
Power OFF
- Hold the power button down for 5 seconds.
- The camera will provide an Audio Prompt “Power Off”.
PAIRING YOUR DEVICE
- NOTE: The camera does NOT have to be in the feeder to activate the device.
- If the device is not already paired the device will automatically enter pairing mode after powering on.
- Pairing Mode will be indicated by a blue flashing light
- If the blue LED is not flashing, make sure the camera is powered on and click the power button 3 times to enter pairing mode
- In the Mobile application navigate to “Add a Feeder” and follow the onscreen instructions prompts to activate your device.
- Successful pairing will be indicated in the application.
- There will also be an audio prompt “Device Pairing Successful.”
